VHM-Orbitalgewindefräser TC630-M1.4-A0D-WB10TJ

ArtNr. (L)

WA.031041

ArtNr. (H)

TC630-M1.4-A0D-WB10TJ

Hersteller:

WALTER

EAN-Code:

4042446322472

VHM-Orbitalgewindefräser TC630 • Supreme • M60 • WB10TJ • ≤2xD • Schaft DIN 6535 HA • P=0,3mm • Dc=1,1mm

Ganze Beschreibung einblenden

Anfrage

Produktdaten 91
Downloads 4
Varianten

A2 [mm]	1,05
A5 [mm]	0,67
APMX [mm]	0,3
B2 [mm]	0,3
B3 [mm]	10
B4 [mm]	2,95
B5 [mm]	38
B71 [mm]	38
BD [mm]	0,67
BLD	10
BMC	H
Bezeichnung	TC630-M1.4-A0D-WB10TJ
C11	ZYL
C12	1
C14	0
C15	5
C2	30
C3 [mm]	3
C31	h6
C4 [mm]	28
CCMS	ZYL01F3000h$06
CNSC	0
COATING	AlTiN
CP [MPa]	0
CPDF	0
CUB	M
CUBPMS	F
CXSC	0
CZCMS	30
D11	T
D31	M
D32 [mm]	0,3
D6 [1/min]	527559
D7 [kg]	0,009
D_N	M 1.4
D_c [mm]	1,05
DC [mm]	1,05
DN [mm]	0,67
E2 [°]	7,5
F1	R
F21	4
F3	R
F4 [°]	15
FHA [°]	15
FHH	R
FMT	EXT
GAMF [°]	7,5
GRADE	WB10TJ
H11	-
H21	0
H22	0
H3	WB10TJ
H4	H
H5	AlTiN
HAND	R
IEP	0
J1	PWZ-NORM
J11	HA
J21	TC630-M1.4-A0D-WB10TJ
J3	W
J6	ZYL01F3000h$06
J7	0
J8	FSB
KAP [°]	0
LB [mm]	2,95
LF [mm]	38
LS [mm]	28
LU [mm]	2,95
Lc [mm]	0,3
NSM	DIN4000-82
OAL [mm]	38
P [mm]	0,3
PHI [°]	0
RHO [°]	0
RPMX [1/min]	527559
TG	0
THFT	M
TP [mm]	0,3
TPT	F
TSYC	TC630-M-A0D
TTP	I
WT [kg]	0,009
XYWD [mm]	-38
XZWD [mm]	0
YZWD [mm]	0
Z	4
ZEFP	4
d₁ [mm]	3
l₁ [mm]	38
l₃ [mm]	2,95
l₄ [mm]	10

Zuletzt angesehene Produkte:

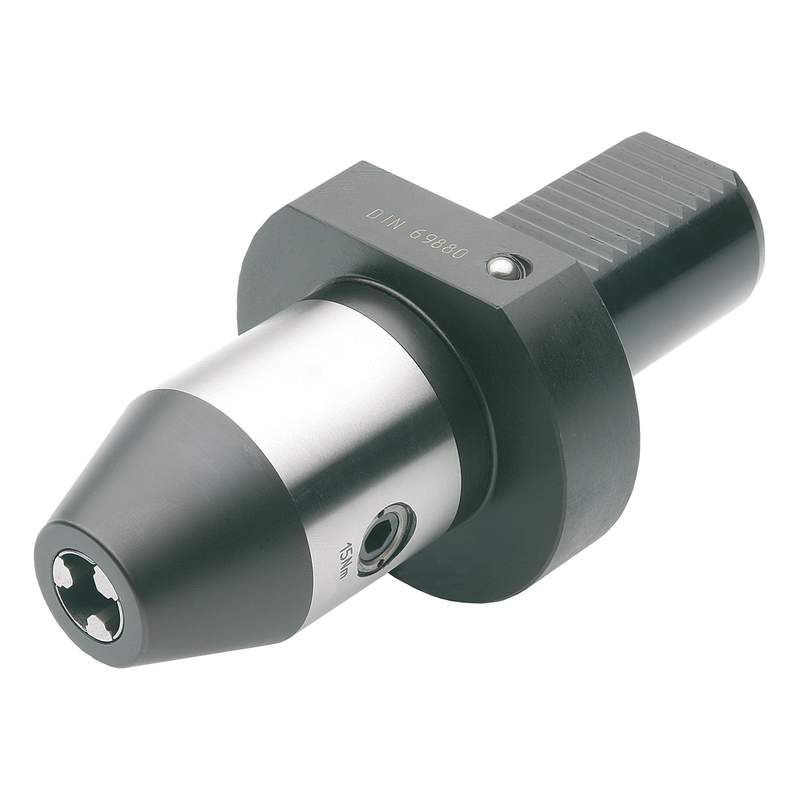

CNC-Bohrfutter 40x1-13 DIN 69880
